A plate sprocket ANSI 40 description and application

Quyidagi asosiy parametrlar va xususiyatlar

1. Biz taqdim eta oladigan material: C1045 po'lat va 304 zanglamaydigan po'lat

2. Qatlam: 0,5 dyuym

3. Zanjir rolikini jihozlang: 0.31 dyuym

4. H: 0, 284 dyuym

5. Yuzaki ishlov berish: qora oksidlanish bilan ishlov berish va tishlarni qattiqlashtiradi

6. About processing, we can make key-way according to customer's requirement.

7. Tish diapazoni: 8-112 (parametrlar jadvaliga qarang)

Plitalar tishli tishli ANSI 40 standarti: Amerika milliy standartlar instituti.

Ilova: Metallurgiya, engil sanoat, kimyo sanoati, stanoklar, qishloq xo'jaligi sanoati, yuk ko'tarish transporti va turli xil transport vositalarini mexanik uzatishda keng qo'llaniladi.

A plate sprocket ANSI 40 parameter

Tishlar	OD	P.C.D	Teshik: d	Og'irligi	Tishlar	OD	P.C.D	Teshik: d	Og'irligi
10	1.84	1.618	1/2	0.18	40	6.65	6.373	3/4	2.21
13	2.33	1.932	1/2	0.28	45	7.45	7.168	3/4	2.79
15	2.65	2.405	1/2	0.36	50	8.25	7.963	3/4	3.4
18	3.14	2.879	5/8	0.5	55	9.04	8.758	3/4	4.06
20	3.46	3.196	5/8	0.6	58	9.52	9.236	3/4	4.50
25	4.26	3.989	5/8	0.93	60	9.84	9.554	3/4	4.8
30	5.06	4.783	5/8	1.29	65	10.63	10.349	3/4	5.3
35	5.86	5.578	5/8	1.73	112	18.12	17.828	3/4	....

Agar siz ANSI40 plastinka tishli tishli tishli raqamini topa olmasangiz, batafsil ma'lumot uchun quyidagi rasmlarni tekshirishingiz mumkin.

A plate sprocket ANSI 40 show detail

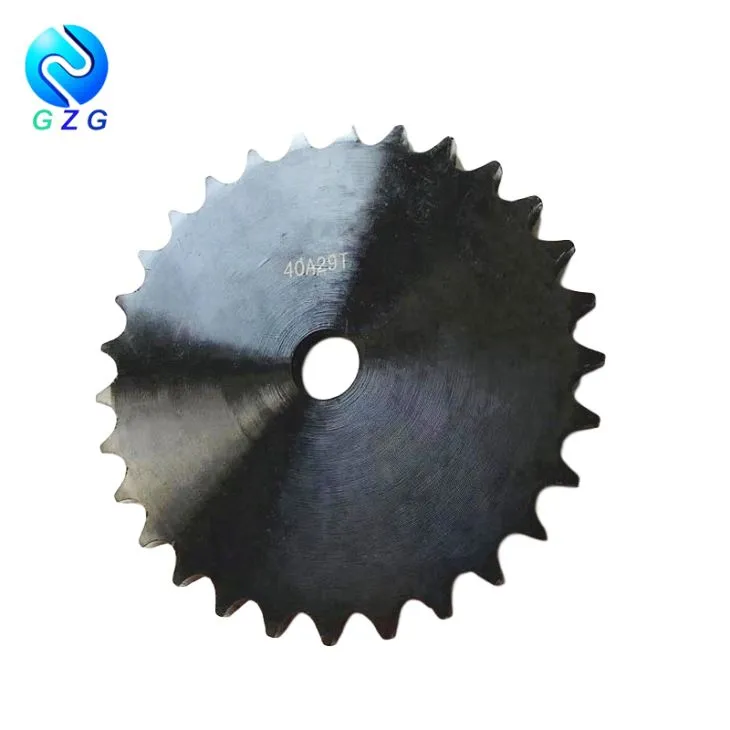

Quyida A plastinka tishli ANSI 40 A 29T yuzasi qora oksidlanish bilan ishlov beriladi va tishlar qattiqlashadi.

Black treatment A plate sprocket ANSI 40

A plate sprocket ANSI 40 service

1. Plitalar tishli ANSI40 uchun yetkazib berish muddati odatda 10-15 kunga to'g'ri keladi, haqiqiy yetkazib berish muddati biz ishlab chiqarish vaziyatimizga ko'ra siz bilan tekshirishimiz mumkin.

2. Mijozlar T/T, valyuta USD, Funt yoki CNY orqali to'lashi mumkin.

3. We can manufacture according to customer's drawing. Just need to tell us your requirement with your drawing.

4. Plastinka tishli ANSI40 sirt rangi biz qila olamiz Moviy, po'lat tabiat rangi, Qora, nikel.

5. As usual, we don't advise to send sample due to cost would be high. But if we have the A plate sprocket ANSI 40 in stock, we can send it for customer with free of one sample, customer need to bear the courier charge.

6. Buning uchun A plastinka tishli ANSI 40 MOQ 100 PCS;

A plate sprocket ANSI 40 production workshop

A plastinka tishli ANSI40 ishlab chiqarish sifatini saqlab qolish uchun turli xil mashinalar, ishchilarimizni yaxshi kayfiyatda ishlashlari uchun toza ish muhiti

A plate sprocket ANSI 40 workshop
