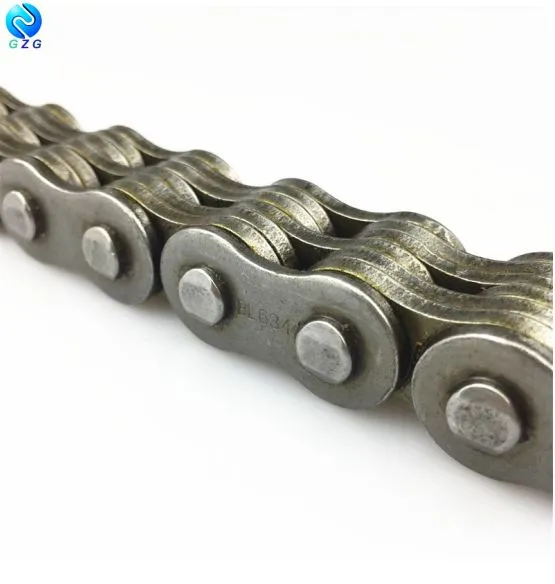

BL SERISI BARGLAR ZANJIRI

Iltimos, BL barg zanjiri, B seriyasi, Karbon po'latining o'lchamlarini toping. Qisqa etkazib berish muddati va maksimal chegirma.

BL422-BL888


ISO Zanjir raqami	ANSI Zanjir raqami	Pitch	Plita bog'lash	Plita chuqurlik	Plita qalinligi	Pin diametri	Pin uzunligi	Kuchlanish kuch	O'rtacha kuchlanish kuch	Og'irligi boshiga mater
		P		h2 maks	T maks	d2 maks	L maks	Q min	Q0	q
		mm		mm	mm	mm	mm	kN/lbf	kN	kg/m
LH0822	BL422	12.700	2x2	12.07	2.03	5.09	11.05	22.2/5045	27.6	0.60
LH0823	BL423		2x3				13.16	22.2/5045	27.6	0.75
LH0834	BL434		3x4				17.40	33.4/7591	41.4	1.05
LH0844	BL444		4x4				19.51	44.5/10114	56.0	1.20
LH0846	BL446		4x6				23.75	44.5/10114	56.0	1.46
LH0866	BL466		6x6				27.99	66.7/15159	81.7	1.77
LH0888	BL488		8x8				36.45	89.0/20227	109.4	2.32
LH1022	BL522	15.875	2x2	15.09	2.42	5.96	12.90	33.4/7591	43.1	0.90
LH1023	BL523		2x3				15.37	33.4/7591	43.1	1.10
LH1034	BL534		3x4				20.32	48.9/11114	65.6	1.50
LH1044	BL544		4x4				22.78	66.7/15159	84.5	1.80
LH1046	BL546		4x6				27.74	66.7/15159	84.5	2.20
LH1066	BL566		6x6				32.69	100.1/22750	125.1	2.65
LH1088	BL588		8x8				42.57	133.4/30318	169.5	3.50
LH1222	BL622	19.050	2x2	18.11	3.25	7.94	17.37	48.9/11114	68.2	1.50
LH1223	BL623		2x3				20.73	48.9/11114	68.2	1.80
LH1234	BL634		3x4				27.43	75.6/17181	102.8	2.50
LH1244	BL644		4x4				30.78	97.9/22250	136.9	2.90
LH1246	BL646		4x6				37.49	97.9/22250	136.9	3.60
LH1266	BL666		6x6				44.20	146.8/33364	214.2	4.30
LH1288	BL688		8x8				57.61	195.7/44477	217.7	5.80
LH1622	BL822	25.400	2x2	24.13	4.00	9.54	21.34	84.5/19204	108.2	2.40
LH1623	BL823		2x3				25.48	84.5/19204	108.2	3.00
LH1634	BL834		3x4				33.76	129.0/29318	170.0	4.20
LH1644	BL844		4x4				37.90	169.0/38409	214.6	4.80
LH1646	BL846		4x6				46.18	169.0/38409	214.6	6.00
LH1666	BL866		6x6				54.46	253.6/57636	324.5	7.20
LH1688	BL888		8x8				71.02	338.1/76841	432.7	9.60

BL1022-BL2088


ISO Zanjir raqami	ANSI Zanjir raqami	Pitch	Plita bog'lash	Plita chuqurlik	Plita qalinligi	Pin diametri	Pin uzunligi	Kuchlanish kuch	O'rtacha kuchlanish kuch	Og'irligi boshiga mater
		P		h2 maks	T maks	d2 maks	L maks	Q min	Q0	q
		mm		mm	mm	mm	mm	kN/lbf	kN	kg/m
LH2022	BL1022	31.75	2x2	30.18	4.80	11.11	25.37	115.6/26272	165.8	3.57
LH2023	BL1023		2x3				30.33	115.6/26272	165.8	4.45
LH2034	BL1034		3x4				40.23	182.4/41454	248.7	6.19
LH2044	BL1044		4x4				45.19	231.3/52568	303.6	7.04
LH2046	BL1046		4x6				55.09	231.3/52568	303.6	8.77
LH2066	BL1066		6x6				65.00	347.0/78863	433.7	10.50
LH2088	BL 1088		8x8				84.81	462.6/105136	604.1	14.00
LH2422	BL1222	38.10	2x2	36.20	5.60	12.71	29.62	151.2/34363	192.0	4.96
LH2423	BL1223		2x3				35.43	151.2/34363	192.0	6.16
LH2434	BL1234		3x4				47.07	244.6/55591	315.9	8.55
LH2444	BL1244		4x4				52.88	302.5/68750	381.1	9.76
LH2446	BL1246		4x6				64.52	302.5/68750	381.1	12.16
LH2466	BL1266		6x6				76.15	453.7/103113	543.6	14.61
LH2488	BL1288		8x8				99.42	605.0/137500	726.0	19.36
LH2822	BL1422	44.45	2x2	42.24	6.40	14.29	33.55	191.3/43477	225.7	6.89
LH2823	BL1423		2x3				40.16	191.3/43477	225.7	8.55
LH2834	BL1434		3x4				53.37	315.8/71772	448.3	11.61
LH2844	BL1444		4x4				59.97	382.6/86954	451.2	13.24
LH2846	BL1446		4x6				73.18	382.6/86954	451.2	16.51
LH2866	BL1466		6x6				86.39	578.3/131431	682.4	19.79
LH2888	BL1488		8x8				112.80	765.1/173886	902.8	26.35
LH3222	BL1622	50.80	2x2	48.26	*7.20	17.46	39.01	289.1/65704	341.1	8.78
LH3223	BL1623		2x3				46.58	289.1/65704	341.1	10.90
LH3234	BL1634		3x4				61.72	440.4/100091	519.6	15.15
LH3244	BL1644		4x4				69.29	573.8/131431	680.4	17.27
LH3246	BL1646		4x6				84.43	578.3/131431	680.4	21.53
LH3266	BL1666		6x6				99.57	857.4/194863	1000.7	25.88
LH3288	BL1688		8x8				129.84	1156.5/262841	1364.6	34.29
LH4022	BL2022	63.50	2x2	60.33	9.91	23.81	51.74	433.7/98568	511.7	15.95
LH4023	BL2023		2x3				61.70	433.7/98568	511.7	19.78
LH4034	BL2034		3x4				81.61	649.4/147590	766.2	27.46
LH4044	BL2044		4x4				91.57	867.4/197163	1023.5	31.34
LH4046	BL2046		4x6				111.48	867.4/197163	1023.5	39.01
LH4066	BL2066		6x6				131.39	1301.1/295704	1535.2	46.63
LH4088	BL2088		8x8				171.22	1734.8/394272	2046.5	62.00
* Ikki xil zanjirli plastinka qalinligi. Birinchisi 7,20 mm, ikkinchisi 7,52 mm.

GZG barg zanjirining asosiy turlari AL seriyali, BL seriyali va LL seriyasidir. Foydalanuvchilar turli ish sharoitlariga ko'ra tegishli barg zanjirlarini tanlaydilar. Sizga mashhur barg zanjiri turi bo'lgan BL seriyasini tanlashingizni tavsiya qilamiz.

Etarli zaxiralar etkazib berish muddatini qisqartiradi. Oddiy barg zanjirlarini tanlasangiz, ishlab chiqarishni 15 kun ichida tugatishimiz mumkin.

Barg zanjirini qanday o'rashimiz mumkin?

Odatda biz barg zanjirini (kichik o'lchamli) o'rash uchun karton qutidan foydalanamiz, keyin uni kontrplak qutilariga joylashtiramiz. Ammo katta o'lcham uchun biz uni to'g'ridan-to'g'ri kontrplak qutisiga qo'yishimiz mumkin (karton quti etarlicha kuchli emas.

Qanday qilib biz mijozlarga zanjirlarni jo'natamiz?
