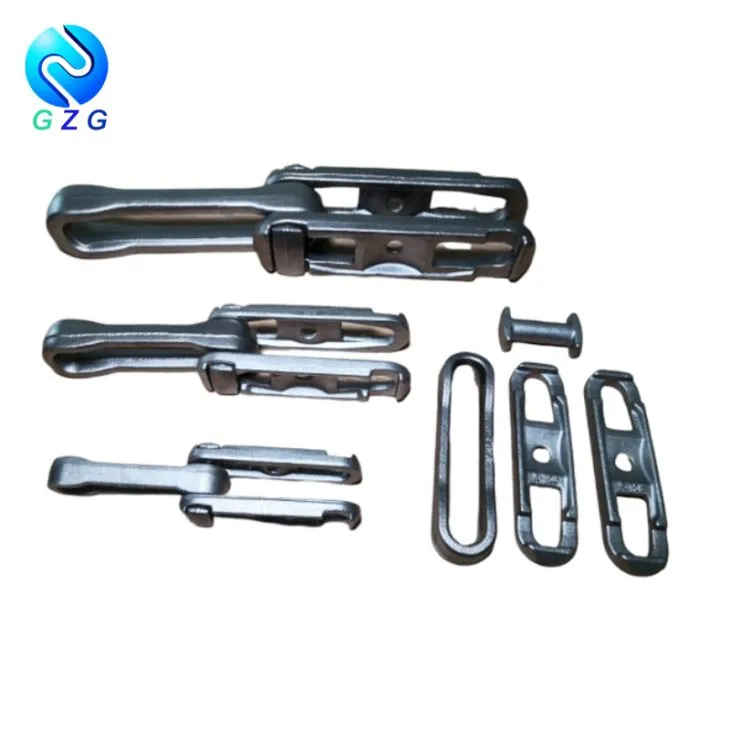

Konveyerlar uchun-soxta Perchinsiz zanjiruchta asosiy qismdan iborat bo'lib, ularning har biri soxta mahsulotdir. Zanjir yig'ilganda, ikkita tashqi zanjir plitalari va pinlar zanjir halqasining o'rtasiga joylashtiriladi va jarayonni yakunlash uchun 90 daraja aylanadi.
Uni qismlarga ajratish oson va soxta perchinsiz zanjir-aylana yo‘lda yuradigan og‘irroq materiallarga bardosh bera oladi.
Konveyerlar uchun soxta zanjirning-qo‘llaniladigan sohalari: avtomobil ishlab chiqarish, oziq-ovqat mahsulotlarini qayta ishlash, osilgan zanjirga muhtoj bo‘lgan metall zavodi.
Drawing and dimensions of Drop-forged Rivetless Chain for Conveyors
| Zanjir Yo'q. | Pitch | O'lchamlari | Yanal burchak | Yakuniy kuch | Og'irligi | |||||||
| A | B | F | S | J | K | T | D | kg/M | ||||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | daraja | KN | ||
| X348 | 76.6 | 45.0 | 18.8 | 27.0 | 13.5 | 13.2 | 20.6 | 10.2 | 12.7 | 9.0 | 110.0 | 3.2 |
| X458 | 102.4 | 56.0 | 25.4 | 36.0 | 17.4 | 16.0 | 26.5 | 12.0 | 16.0 | 9.0 | 220.0 | 4.7 |
| X678 | 153.2 | 77.0 | 32.0 | 51.0 | 25.0 | 21.0 | 34.2 | 17.0 | 22.0 | 7.0 | 320.0 | 9.5 |
| X80 | 80.0 | 46.0 | 18.8 | 27.0 | 13.5 | 13.2 | 20.6 | 6.3 | 12.7 | 6.5 | 110.0 | 3.1 |
| F100 | 100.0 | 56.0 | 25.0 | 36.0 | 17.4 | 16.0 | 26.5 | 12.0 | 16.0 | 9.0 | 220.0 | 4.7 |
| Zanjir Yo'q. | Pitch | O'lchamlari | Yanal burchak | Yakuniy kuch | Og'irligi | |||||||
| A | B | F | S | J | K | T | D | kg/M | ||||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | daraja | KN | ||
| S458 | 102.4 | 49.5 | 25.4 | 36.0 | 17.4 | 16.0 | 27.0 | 7.8 | 16.0 | 9.0 | 220.0 | 4.7 |
| S348 | 76.6 | 46.0 | 18.8 | 27.0 | 13.5 | 13.2 | 20.6 | 6.3 | 12.7 | 9.0 | 110.0 | 3.2 |
| S678 | 153.2 | 66.6 | 32.0 | 51.0 | 25.0 | 21.0 | 34.2 | 12.7 | 22.0 | 7.0 | 320.0 | 9.5 |
| S698 | 153.2 | 93.0 | 39.7 | 69.9 | 30.2 | 25.4 | 41.3 | 14.3 | 29.1 | 5.0 | 600.0 | 19.6 |
| Zanjir Yo'q. | Pitch | O'lchamlari | Yanal burchak | Yakuniy kuch | Og'irligi | |||||||
| A | B | F | S | J | K | T | D | kg/M | ||||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | daraja | KN | ||
| 348 | 76.6 | 44.5 | 18.8 | 27.0 | 13.5 | 13.2 | 20.6 | 7.6 | 12.7 | 9.0 | 110.0 | 3.2 |
| 458 | 102.4 | 58.0 | 25.4 | 36.0 | 17.4 | 16.0 | 26.5 | 8.5 | 16.0 | 9.0 | 220.0 | 4.7 |
| 678 | 153.2 | 77.0 | 32.0 | 51.0 | 25.0 | 21.0 | 34.2 | 12.0 | 22.0 | 7.0 | 320.0 | 9.5 |
| 698 | 153.2 | 95.3 | 39.0 | 64.0 | 32.0 | 25.4 | 42.3 | 15.0 | 28.0 | 5.0 | 515.0 | 16.9 |
| 998 | 229.4 | 95.3 | 39.7 | 676.0 | 30.2 | 25.4 | 41.7 | 15.0 | 28.6 | 5.0 | 605.0 | 14.8 |
| 9118 | 229.4 | 125.0 | 50.0 | 78.0 | 37.2 | 33.5 | 52.0 | 20.0 | 35.0 | 5.0 | 832.0 | 24.2 |
| 80 | 80.0 | 48.0 | 18.8 | 29.0 | 13.5 | 13.0 | 21.0 | 6.5 | 12.0 | 6.5 | 110.0 | 3.2 |
| 80H | 80.0 | 72.0 | 32.0 | 42.0 | 19.5 | 19.0 | 34.5 | 11.0 | 18.0 | 6.5 | 250.0 | 8.7 |
| XT100 | 100.0 | 58.0 | 25.0 | 37.0 | 17.4 | 16.0 | 26.5 | 8.5 | 16.0 | 9.0 | 220.0 | 4.7 |
| XT160 | 160.0 | 78.0 | 34.5 | 54.0 | 28.0 | 20.5 | 36.0 | 12.0 | 24.0 | 5.0 | 410.0 | 10.3 |
Perchinsiz zanjirlar uchun quyma biriktirma
 | |||||||||
| Zanjir Yo'q. | Pitch | O'lchamlari | |||||||
| A | B | C | T | F | H | D | E | ||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| X348 | 76.6 | 80.0 | 35.0 | 26.0 | 7.0 | 26.0 | 43.5 | 11.0 | 11.0 |
| X458 | 102.4 | 88.0 | 50.0 | 35.0 | 8.0 | 30.0 | 50.0 | 11.0 | 13.0 |
2013 yilda Guizhou GZG Transmission Co., Limited, ko'proq yoki kamroq, mahalliy mashinalar va transmissiya ishlab chiqaruvchilarining ba'zi aktsiyalarini sotib oldi va ushlab turdi. Va 2015 yildan beri kompaniyamiz Xitoyning g'arbiy qismidagi mexanik elektr uzatish qismlarining eng yirik ishlab chiqaruvchilari va eksportchilaridan biriga aylandi. Mahsulotlarimiz Janubi-Sharqiy Osiyo, Evropa Ittifoqi va AQSh bozorlarida mashhur bo'lib, tog'-kon sanoati, po'lat, samolyot, kema va barcha turdagi mashinalarda keng qo'llanilgan.
Yuqori sifat, eng yaxshi narx va ehtiyotkorlik bilan xizmat ko'rsatish bizning printsipimizdir, buyurtma katta yoki kichik bo'lishidan qat'i nazar, sizning mamnunligingiz bizni qoniqtiradi.
Drop{0}}konveyerlar uchun soxta Perchinsiz zanjir PCS tomonidan sotiladi, mijozlar zanjirlar o'z kompaniyasiga kelganida o'rnatadilar.
Tashish uchun biz dengiz, havo, kurer, yuk mashinasida jo'natishimiz mumkin (Mijozlarning janubi-sharqida, masalan, Tailand uchun)
1-savol: Buyurtmadan oldin sifatni tekshirish uchun namuna olsam bo'ladimi?
As usual, we don't advise to send sample because the cost would be high. But it is okay if there is stock for standard products and also customers can pay for freight.
2-savol: Sizning fabrikangiz qanday sertifikatga ega?
We have passed ISO quality management system certification.
3-savol: Sizning fabrikangizda sinov uskunalari bormi?
We have own lab with different testing facilities, such as hardness, strength tensile, working load.
